Brief Introduction
LE-9212/LH-9212 is a low-viscosity, two-component, liquid epoxy
resin insulating system. It consists of LE-9212 epoxy resin
component and LH-9212 hardener. It is designed for medium to high
electrical insulation applications. This epoxy resin system is
suitable for conventional vacuum casting or automatic pressure
gelation process and exhibits excellent processing, electrical, and
mechanical properties.
Current Transformer APG Epoxy - High Dielectric, Anti - Aging
Encapsulation
Premium APG epoxy designed for CT encapsulation: high dielectric
performance resists partial discharge, while anti-aging properties
extend equipment lifespan. Excellent fluidity allows precise
filling of complex geometries, with strong adhesion to
metal/ceramic components. Meets RoHS standards for safe, reliable
power system applications.
Applications
Indoor electrical insulators for medium and high voltage for
12-40.5kV applications.
Processing Methods
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present
production methods.
Properties
High mechanical and dielectric properties.
Very good thermal shock resistance.
Formulation
| Epoxy resin | LE-9212 | 100 pbw |
| Hardener | LH-9212 | 100 pbw |
| Filler | Silica powder | 300-380 pbw |
| Color paste | LC series* | 3 pbw |
Advantage
Package Image

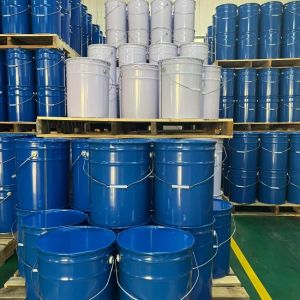

Shipment image
Example application image
FAQ
1.What's the usage of your product?
Our product is epoxy resin raw material, for making medium and high
voltage electrical power insulation parts, such dry type
transformers, potential transformers(PT), current transformers(CT),
voltage transformers(VT), insulators, wall bushings, solid sealed
pole, insulation covers, etc.
2.What's the MOQ of your product?
MOQ of our product is 20kg pail as sample for a trying.
3.What's the price of your product?
We have developed a series of material system to satisfy various of
insulation parts applied to different environment situations. So
our price is flexible depends on the material type, current pricing
of market, order quantity, price terms, and payment terms.
4.What's the most convenient way to confirm suitable material type
for my products?
The best way to confirm is to provide clear photos of your terminal
products, and remark its application environment as Indoor or
Outdoor? And also remark its producing process as APG or Casting?
